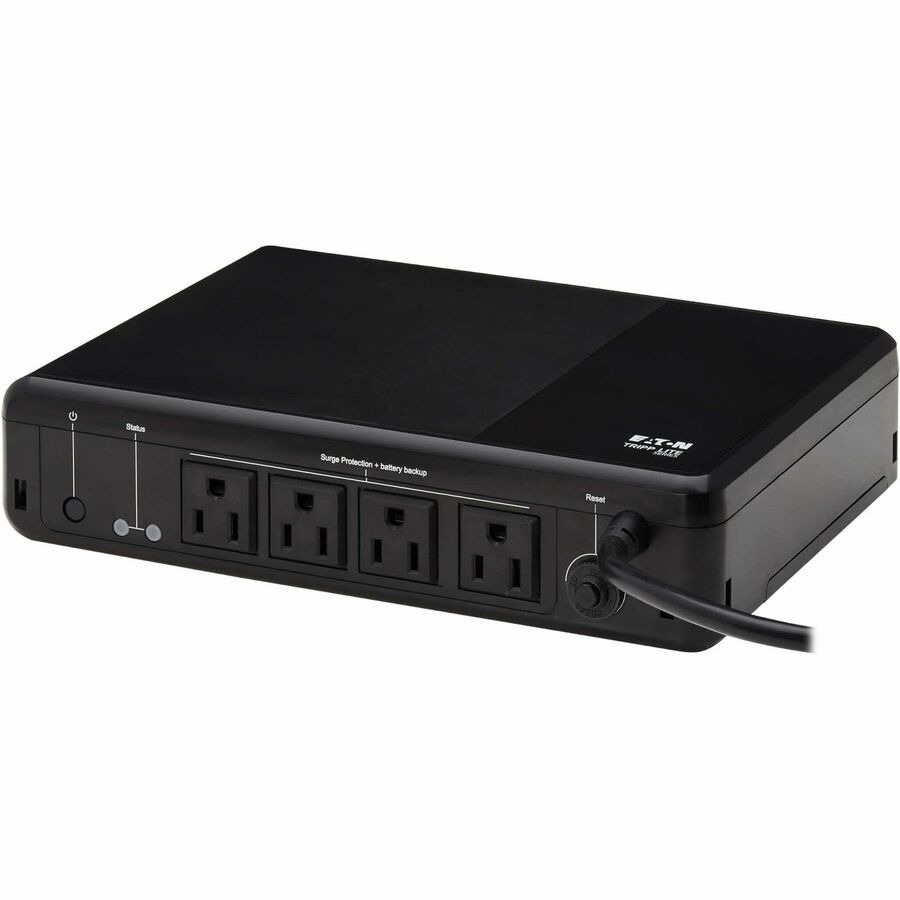

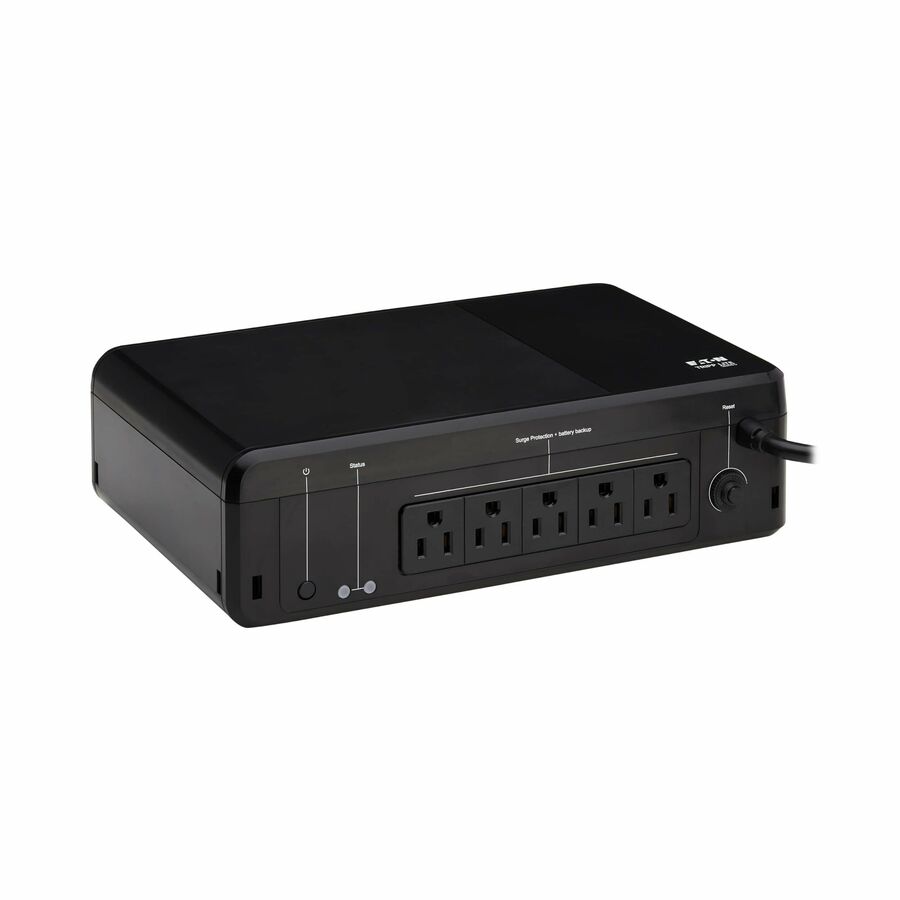

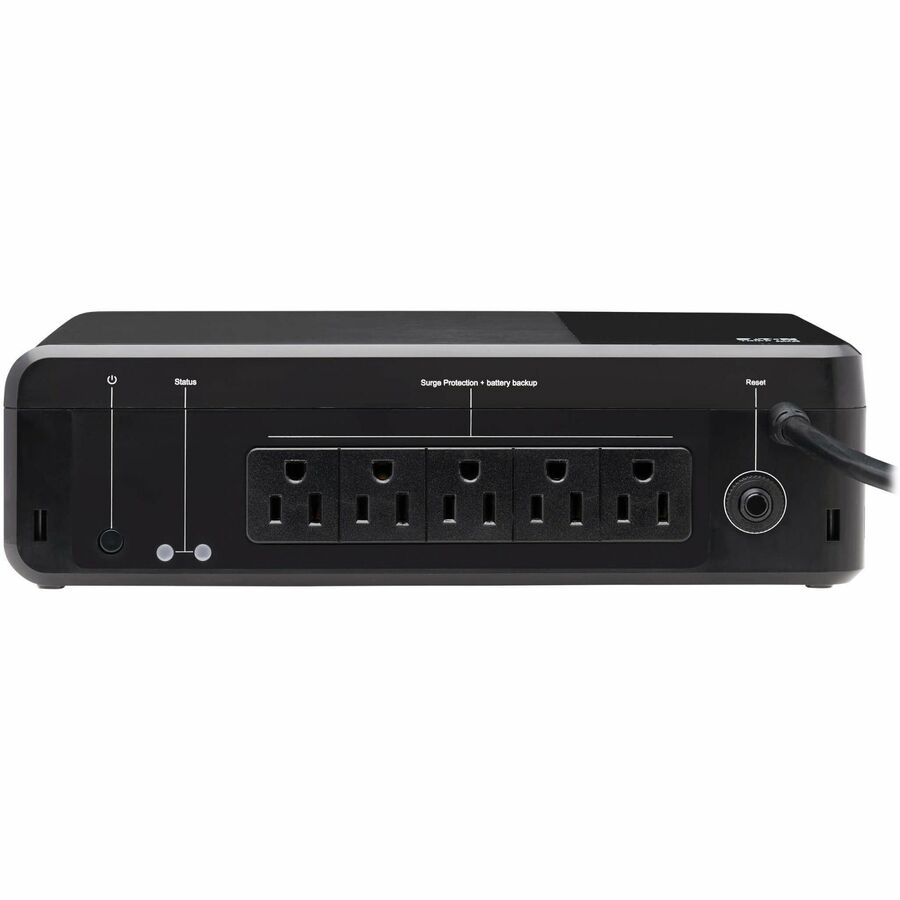

Tripp Lite series BC600R 600VA Desktop/Surface/Wall Mountable UPS

Manufacturer

Eaton Corporation

Manufacturer Part Number

BC600R

Manufacturer Website Address

https://www.eaton.com

Brand Name

Tripp Lite series

Product Model

BC600R

Product Name

BC600R 600VA Desktop/Surface/Wall Mountable UPS

Marketing Information

600VA battery backup for PCs and retail point-of-sale application is a standby UPS that provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise. 300-watt, 120-volt UPS protects home/office computing, networking and point-of-sale equipment in retail, kiosks, foodservice and light industrial environments. It's easy to set up in minutes. Just plug it into a properly grounded wall outlet. Press the power button and connect equipment to the UPS outlets. Input power cable, power button and status LEDs are on the same side for easy access. UPS switches to battery power to keep connected equipment running during short blackouts and brownouts, giving you enough time to save data and complete a safe shutdown in case of a longer outage. Incoming utility power keeps the replaceable VRLA battery fully charged so backup power is always available. It restarts automatically once power is restored.

More from the Manufacturer

Packaged Quantity

1 Each

Product Type

Standby UPS

Catalog

General Line (consumer) Catalog

Catalog Page

N/A

Plug/Connector Type

NEMA 5-15P

Receptacle Type

NEMA 5-15R

Receptacle Detail

4 x NEMA 5-15R

Number of Battery & Surge Outlets

4

Cord Length

5 ft

Transfer Time

10 ms

EMI/RFI Noise Filter

Yes

Phase

Single Phase

Efficiency Detail

97% (AC Mode)

Application/Usage

• POS
• Network
• Retail
• Kiosk
• Industrial
• Food Service
• Home Network
• Wireless Access Point
• Desktop
• Computer Peripheral
• Home/Office
• Hospital

Features

• Audible Alarm
• Cold Start Function
• Green Energy Saving

Load Capacity (VA)

600 VA

Load Capacity (Watt)

300 W

Input Voltage

120 V AC

Input Current

5 A

Output Voltage

120 V AC

Input Frequency

60 Hz

Output Frequency

60 Hz

Waveform Type

Pulse-width Modulated Sine Wave

Surge Energy Rating

190 J

Circuit Breaker

Yes

Output Power Factor

0.5

Status Indicators

LED Indicators:

• Low Battery or Fault Condition
• Power and Line/battery Mode Status

DC System Voltage

12 V DC

Battery Characteristics

Valve-regulated

Battery Chemistry

Lead Acid

Backup/Run Time (Full Load)

1.50 Minute

Backup/Run Time (Half Load)

5 Minute

Typical Battery Recharge Time

8 Hour

Replaceable Battery

Yes

Minimum Operating Temperature

32°F (0°C)

Maximum Operating Temperature

122°F (50°C)

Storage Temperature

5°F (-15°C) - 122°F (50°C)

Maximum Operating Elevation

6561.68 ft

Sound Emission

40 dB

Height

2.3"

Width

10"

Depth

7.1"

Form Factor

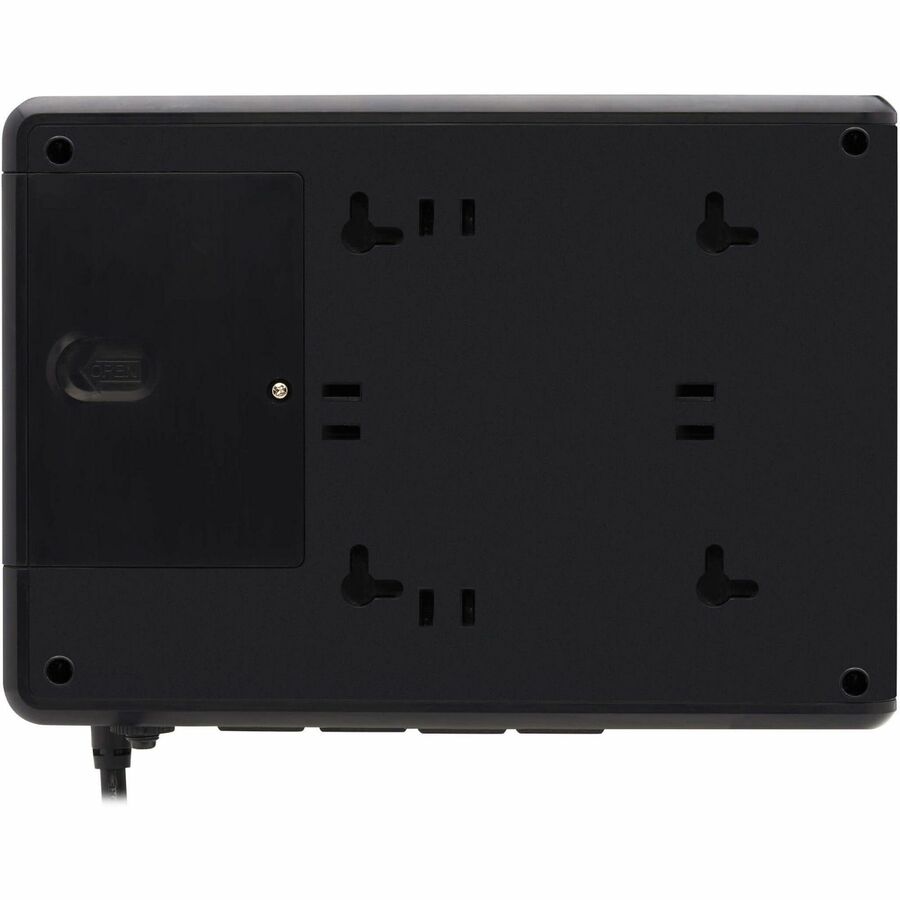

Desktop/Surface/Wall Mountable

Weight (Approximate)

4.41 lb

Package Contents

• BC600R 600VA Desktop/Surface/Wall Mountable UPS
• 4 x M4 x 12 mm Screws
• 4 x M4 x 20 mm Screws
• Quick Start Guide

Certifications & Standards

• CAN/CSA-C22.2 No. 107.3
• NOM
• ICES
• UL 1778

Energy Star

Yes

Country of Origin

Vietnam

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
