StarTech.com VGA Wall Plate Video Extender over Cat5

Manufacturer

StarTech.com

Manufacturer Part Number

STUTPWALLA

Manufacturer Website Address

https://www.startech.com

Brand Name

StarTech.com

Product Name

VGA Wall Plate Video Extender over Cat5

Marketing Information

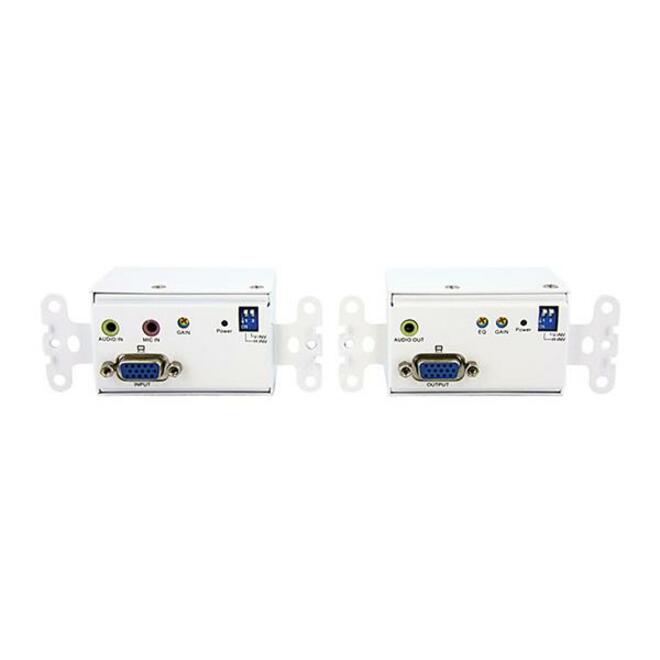

This VGA Wall Plate Cat5 Video with Audio Extender kit includes both transmitter and receiver units, allowing you to make out-of-the-way connections from a VGA video and audio source to a remote monitor location. The transmitter and receiver wall plates can be placed in a wall or ceiling gang for a cleaner, more professional VGA installation, supporting connection distances up to a maximum of 300m (950ft).

"I would highly recommend this to anyone or any business looking for an easy and more efficient way to present."
- bayreviews.com

Offering maximum versatility and convenience, the VGA wall plate kit is easy to install; simply wallmount the transmitter unit near the intended VGA source, then wallmount the receiver unit near the monitor/projector. The VGA transmitter and receiver units can then be linked using standard Cat5e or Cat6 cable to provide a high quality video and stereo audio extension while concealing the cable for a neatly placed installation.
Both VGA transmitter and receiver units use a 12V DC terminal block connector behind the unit that offers a more secure and economical installation; using Cat5/Cat6 cable to extend the VGA signal offers a cost-effective solution based on the broad availability of networking cable which is far more flexible than VGA cable, not to mention less expensive.
Unlike some video extension systems, our VGA extender wall plates also allow you to make use of an existing networking cable (Cat5, Cat6) infrastructure, eliminating the need to re-run cable in the event of an upgrade from VGA to another video standard, by simply swapping out the wall plates.

Packaged Quantity

1 Each

Product Type

Video Extender Transmitter/Receiver

Catalog

Synnex Catalog

Catalog Page

N/A

Connectivity Technology

Wired

Number of Input Devices Supported

1

Number of Output Devices Supported

1

Maximum Operating Distance

984.25 ft

Graphics Modes

WUXGA

Maximum Video Resolution

1920 x 1200

Network (RJ-45)

Yes

Microphone

Yes

Number of Network (RJ-45) Ports

2

Media Type Supported

Twisted Pair

Twisted Pair Cable Standard

Category 6

Input Voltage

12 V DC

Color Family

White

Product Color

White

Product Material

Steel

Transmitter Height

1.50"

Transmitter Width

1.70"

Transmitter Depth

4.10"

Receiver Height

1.50"

Receiver Width

1.70"

Receiver Depth

4.10"

Transmitter Weight (Approximate)

3 lb

Receiver Weight (Approximate)

3 lb

Package Contents

• 1 x Transmitter
• 1 x Receiver
• 1 x Terminal Block for Power Adapter
• 1 x Power Adapter
• 1 x Instruction Manual

Certifications & Standards

• CE
• FCC

TAA Compliant

Yes

Environmentally Friendly

Yes
